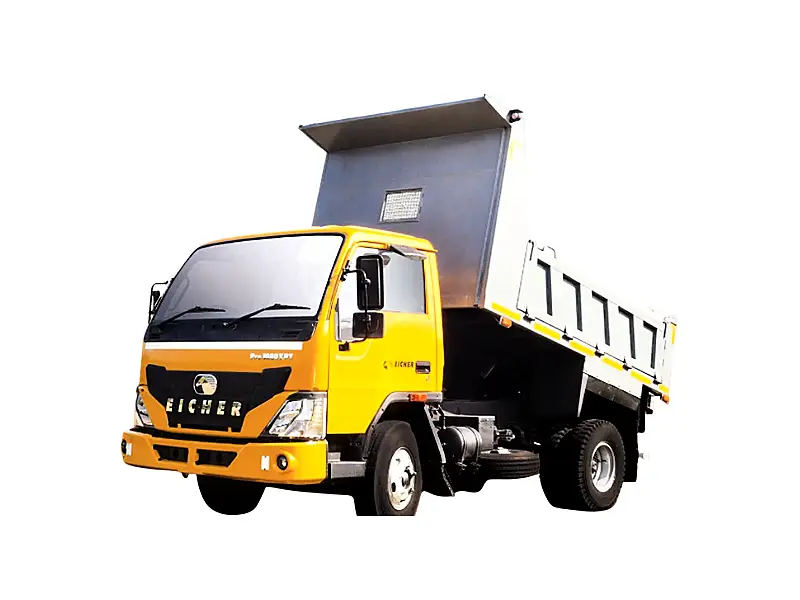

Eicher PRO 1080XPT Base3

Specifications of Eicher PRO 1080XPT Base3

• GVW 8750 kg
• Standard Option Fully built tipper(3.5 CmU)
• Standard Option Fully built tipper(4.5 CmU)
• FTB Dimensions (L X W X H) (3.5 CmU) 3195 X 1900 X 590 mm (internal)
• Engine E483 4Cyl 2V CRS Engine
• Max Power Output 85 KW (~114 HP) @ 2600 RPM
• Max Torque Output 400 Nm @ 1300-1500 RPM
• FIP System CRS
• Emission BS IV
• Transmission Eicher 4M5G
• Gear Type 5 Speed (5 Forward, 1 Reverse) with Hybrid GSL
• Clutch Dia 310 mm
• Gradeability (%) 44%
• Steering Tilt & Telescopic Power Steering (Vacuum Assisted) 6 Degree tilting & 30 mm telescopic movement
• Ground Cleareance 220 mm
• Battery 12V - 70Ah
• Fuel Tank Capacity 60 litres
• TCD (Turning Circle Diameter) 11 m
• Brakes (Service) Dual Circuit, Full air S-cum brakes with voss fitment and ABS
• Brakes (Exhaust) Vaccum assistend, automatic type installed as Std. fitment
• PTO Pneumatically operated PTO
• Chassis Ladder type modular frame
• C - Dimensions 210 X 65 X 6 mm
• No. of cross members 5 + 2 (full width) which offer more strength and rugged chassis
• Suspension (front & Rare) Semi-elliptical laminated leaves (with shock absorber)
• Rear Axel Meritor axel for enhanced reliability & tough of road applications
• Tyre 8.25 x 16 - 16 PR
• Cabin 2m wide aerodynamic cable with modern styling & PEGASUS family look
• Warranty(std.) 18 months or 2000 hours on Vehicle (whichever is earlier)
