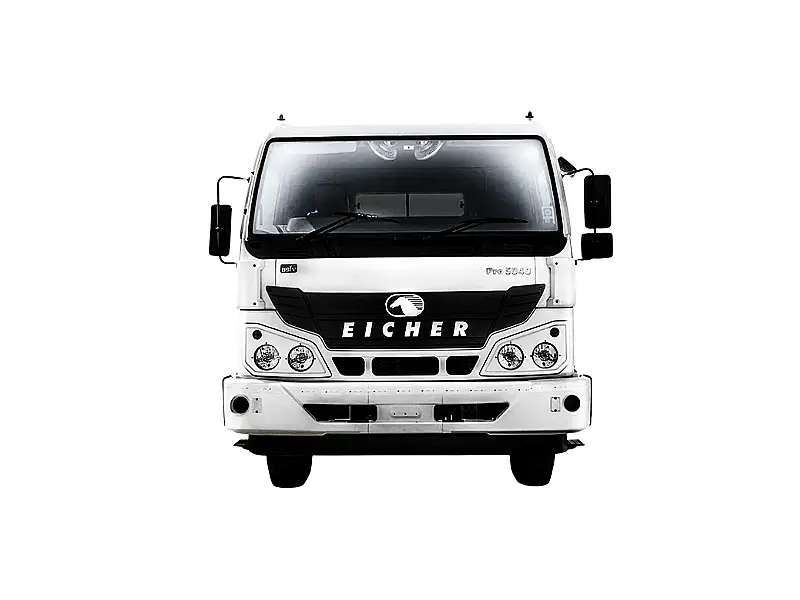

Eicher Pro 5040 3axle trailer
Variants
Key Specifications of Eicher Pro 5040 3axle trailer Truck
-
Fuel Tank Capacity
415 litres -
Engine Type
E694 5.7 - liter CRS with i3 EGR Technology -
Max Power
144 kw (192 HP) @ 2400 RPM -
Max Torque
715 Nm @ 1200-1800 RPM -
Wheelbase (mm)
3175 mm
Specifications of Eicher Pro 5040 3axle trailer
- GVW 40200 kg
- Engine Type E694 5.7 - liter CRS with i3 EGR Technology
- Max. power 144 kw (192 HP) @ 2400 RPM
- Max Torque 715 Nm @ 1200-1800 RPM
- Clutch Type Hydraulically actuated push type with clutch booster
- Clutch Diameter 380 mm
- Gearbox ET9056, 6 forward & 1 reverse
- Front Axle Reverse Elliot I-beam
- Rear Axle Heavy duty fully floating
- Chassis Type 'C' channel ladder type frame, 285x76x6 mm
- Brakes Service Brake: Dual circuit full air 'S' cam, Parking Brake: Full air hand operated on rear wheels
- Suspension Front: semi-elliptic laminated leaf spring, Rear: semi-elliptic laminated leaf spring
- Steering Tilt & telescopic hydraulic power steering
- Wheelbase 3175 mm
- Gradeability (%) 17.5%
- Max. Speed (kmph) 73
- Fuel Tank 415 litres
- Electricals 24V
- Tyres 10R20 - 16PR
