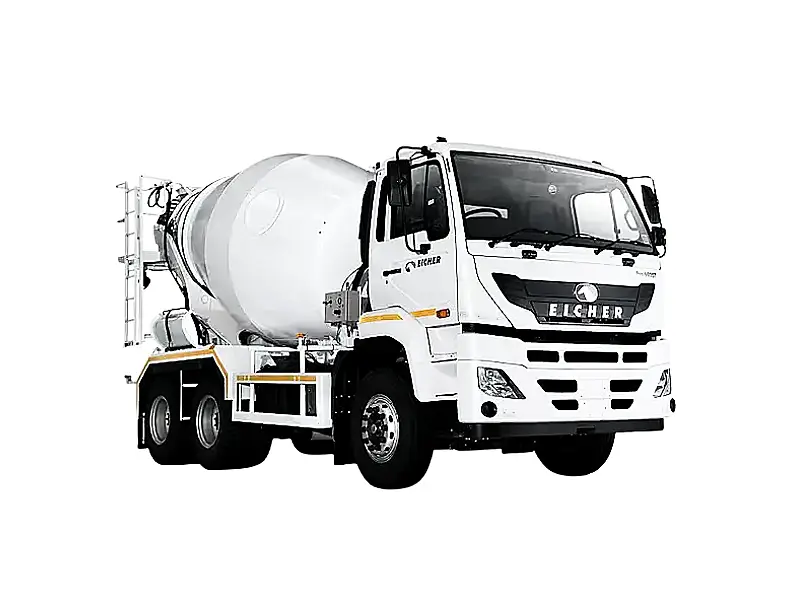

Eicher Pro 6025T TM Base

Specifications of Eicher Pro 6025T TM Base

• Engine VEDX5 BS4 5.1 Liter 4 valve 4cylinder CRS
• Max Power Output (rpm) 210 HP @ 2200 rpm
• Max Torque Output (rpm) 825Nm @ 1200 -1600 rpm
• Emission BS IV SCR
• Transmission ET90S6
• Gear Type 6 Forward & 1 Reverse
• Clutch Diameter 395 mm
• Front Axle Forged reverse Elliot
• Rear Axle Meritor make R1495 Fully-floating Tandem Axle
• FDR 6.16
• Chassis Type Domex 650 ladder type Joggled frame
• Dimension(LxWxH) 285x76x7 mm with 5 mm stiffener
• Front Suspension Parabolic leaf spring
• Rear Suspension Bellcrank Suspension
• GVW 25,000 kg
• Wheelbase 4000 mm
• Cargo Body Type with& without Engine PTO
• Cargo Body Size 6-7 cum
• Gradeability (%) 25.7% with engine PTO, 28.6% without engine PTO
• Ground Clearance 256 mm
• TCD 14.5 m
• Battery 24V,120Ah
• Fuel Tank Capacity 220 litres
• Urea Tank Capacity 22 litres
• Tyres 10.00X20 -16PR
• Cabin Fully suspended day cab
• Steering Tilt & Telescopic hydraulic Power Steering
• Brakes (Service) Service break: Dual circuit full air
• Brakes (Exhaust) Parking brake: Pneumatic hand operated
• A/C yes, as premium feature
• Adjustable Driver Seat 6 way adjustable Driver seats, with vertical adjustment suitable
• Seat Type Driver Seat – Bucket Codriver Seat – Bench Type
• Cruise Control Yes
• Driver Information Display/ Fuel coaching yes
• Telematics yes
• Available Colour Dazzling White
• M-Booster yes
