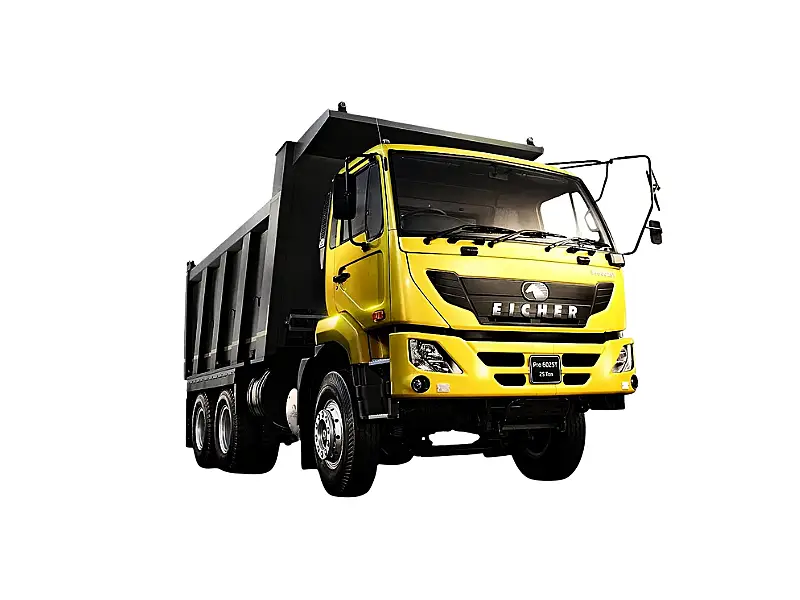

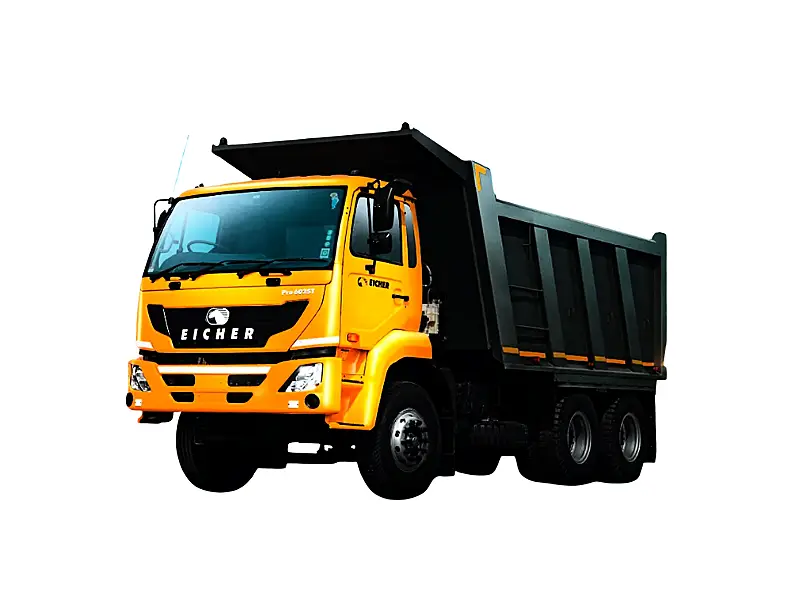

Eicher Pro 6025T Base
Variants
Key Specifications of Eicher Pro 6025T Base Truck
-
Fuel Tank Capacity
220 litres, Rectangular Polymer tank -
Wheelbase (mm)
4000 mm -
Max Torque
850 Nm @ 1100-1700 rpm -
Fuel Type
Diesel -
Power Steering
Tilt and Telescopic hydraulic power steering -
Seating Capacity
D+1
Specifications of Eicher Pro 6025T Base
- Engine VEDX8 BSIII 7.7 litres
- Max. Engine output 220 HP @ 2200 rpm
- Max. torque 850 Nm @ 1100-1700 rpm
- Clutch Size & type 430mm, Booster assisted pull type
- Gearbox ZF 1110TD, 9 Forward, 1 Reverse
- Rear Axle Meritor Tandem-Fully Floating Banjo
- Final Drive Ratio Rear Axle Ratio) 5.29
- Crown Size 432mm
- Steering Tilt and Telescopic hydraulic power steering
- Chassis Type Domex 650 Ladder Type Joggle Frame, 285x76x7 mm with 6 mm stiffener
- Number of Cross Members Seven
- Front Suspension Semi-elliptical with anti roll bar, 9 leaves, 7 nos. 13 mm and 2 nos. 16 mm thickness
- Shock Absorbers Hydraulic Double Acting Telescopic Type at Front Only
- Rear Suspension Bogie Suspension, 11 Leaves 27 mm thickness
- Brakes Service Brake: Dual circuit full air Parking Brake: Pneumatic hand operated
- Tyres 10x20 (11x20 Optional), Cross Ply
- Fuel Tank Capacity 220 litres, Rectangular Polymer tank
- Dimensions Wheelbase 4000 mm
- Front Wheel Track 2085 mm
- Rear Wheel Track 1926 mm
- Min. Ground Clearance 285 mm
- Width 2590 mm
- Body Size (Cum) 16 Box, 14 Box & Rock
- Tipping Kit Hyva, FE - 129-3-3640
- Electricals 2 x 24V (150 Ah)
- Max. Speed 79.6 kmph
- Turning Circle Diameter 14.4 m
- Gradeability 42.5% (crawler gear)
