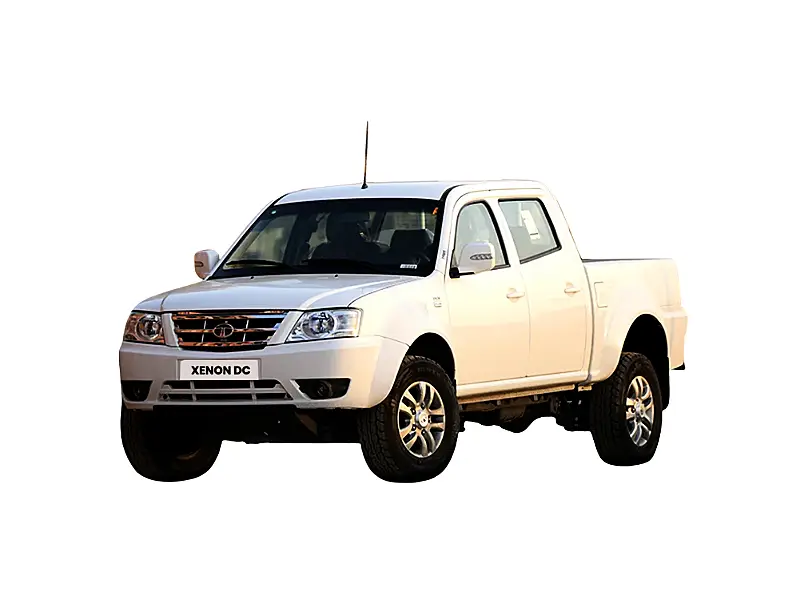

Tata XENON DC 2.2 4×4
Variants
}
Key Specifications of Tata XENON DC 2.2 4×4 Truck
-
Engine Type
Tata 2.2 litre dicor turbocharged engine -
Max Torque
320 Nm @ 1500 – 3000 rpm -
Fuel Tank Capacity
70 -
Power Steering
Power steering -
Wheelbase (mm)
2825 -
Gross vehicle weight (Kgs)
3100 kg
Specifications of Tata XENON DC 2.2 4×4
- Engine Type Tata 2.2 litre dicor turbocharged engine
- Engine capacity (cc) 2179
- Max engine output 148 Bhp (110 kW) @ 4000 rpm
- Max engine torque 320 Nm @ 1500 – 3000 rpm
- Fuel tank capacity (ltr) 70
- Clutch Single plate dry friction type
- Gearbox GBS 76 syncromesh 5F + 1 R
- Steering Power steering
- SUSPENSIONFront Independent suspension with double wishbone with torsion bar shock absorber
- Suspension Rear Parabolic leafspring with hydraulic double acting shock absorber
- BRAKES Front Vacuum assisted independent hydraulic brakes w/ tandem booster – disc
- BRAKES Rear Vacuum assisted independent hydraulic brakes w/ tandem booster – drum
- ABS with EBD Bosch ABS 8.1
- WHEELS & TYRES Type 215 / 75 R16 tubeless
- Radius (inches) 16
- Wheelbase (mm) 2825
- Length (mm) 4800
- Width (mm) 1860
- Height – Unladen (mm) 1765
- Load body dimensions (mm) 1880 x 1410 x 410
- Turning Circle Radius (metres) 5.5
- Ground Clearance (mm) 210
- GVW (Kg) 3100
- Kerb weight (Kg) 1965
- Payload (Kg) 1135
- Grade ability 78%
- Top speed (kmph) 160
- Seating Capacity Driver + 1
- Body colours Arctic White, Quartz Black, Arctic Silver, Arizona Blue, Mineral Red, Dense Forest Green
